How Did Ancient People Collect Water Without Electricity or Pipes?
Have you ever thought about how people got water before we had electricity, pipelines, or modern motors?Today, clean water flows easily from taps at the flick of a hand. But thousands of years ago, getting water was a daily struggle. People had to rely on clever techniques and simple tools to lift water from rivers, ponds, or wells. Let’s explore how our ancestors invented brilliant systems to collect water — some of which still inspire modern designs today.
👉Don’t miss the 3D animation at the end of this blog.
The Shadoof – A 4000-Year-Old Invention
One of the earliest and most ingenious devices for lifting water was the Shadoof, invented more than 4000 years ago in Ancient Egypt. It might have looked simple, but it solved a big problem — how to lift water efficiently from rivers.

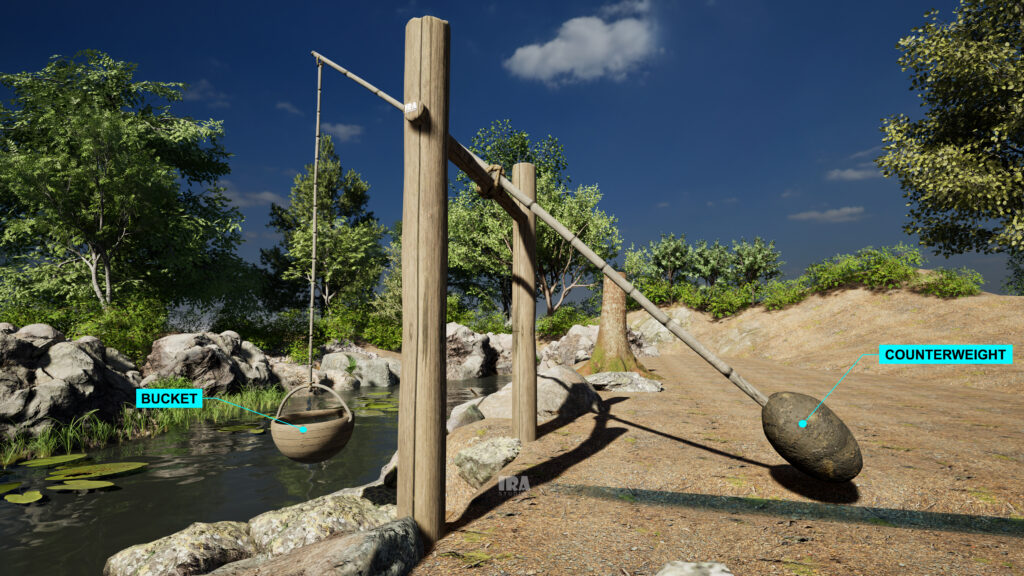

A Shadoof was made entirely of wood and worked on the principle of a lever:
On one end of a long wooden beam was a bucket used to scoop water
On the other end was a counterweight like a stone or lump of clay
The beam rested on a vertical support, allowing it to swing up and down
With the help of the counterweight, even a small child or elderly person could lift water with ease. It required minimal force and was perfect for irrigation in farming communities.
The Shadoof wasn’t just used in Egypt. It was also seen in India, especially in agricultural villages. In areas with steep riverbanks, people even created multi-level Shadoofs — a system where water was lifted in stages, one level at a time.

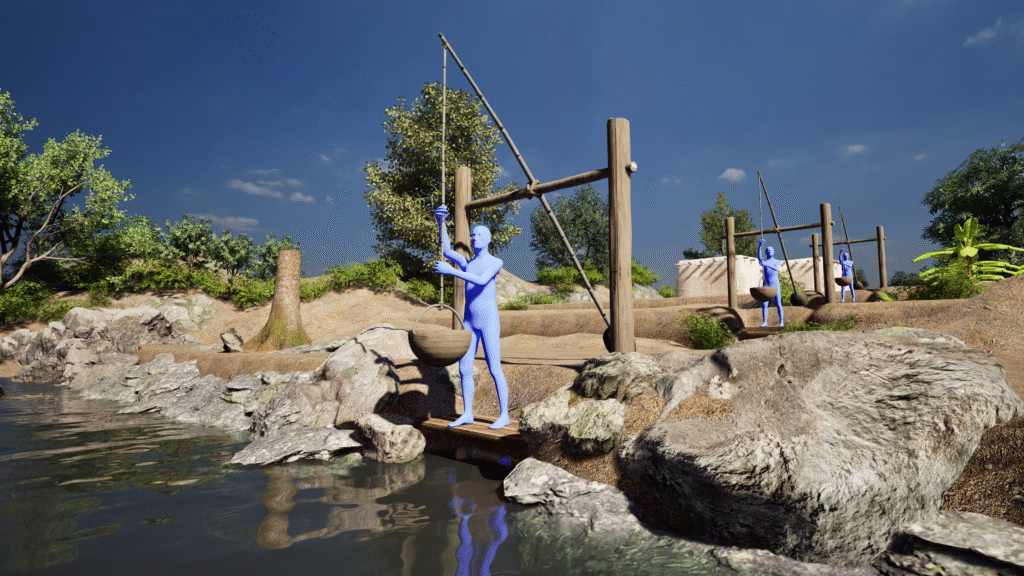

Multi-level Shadoofs
Want to dive deeper into how a Shadoof works? Explore our full blog post packed with visuals and clear explanations.👇
Shadoof-The Ancient Water-Lifting Tool That Changed Farming Forever

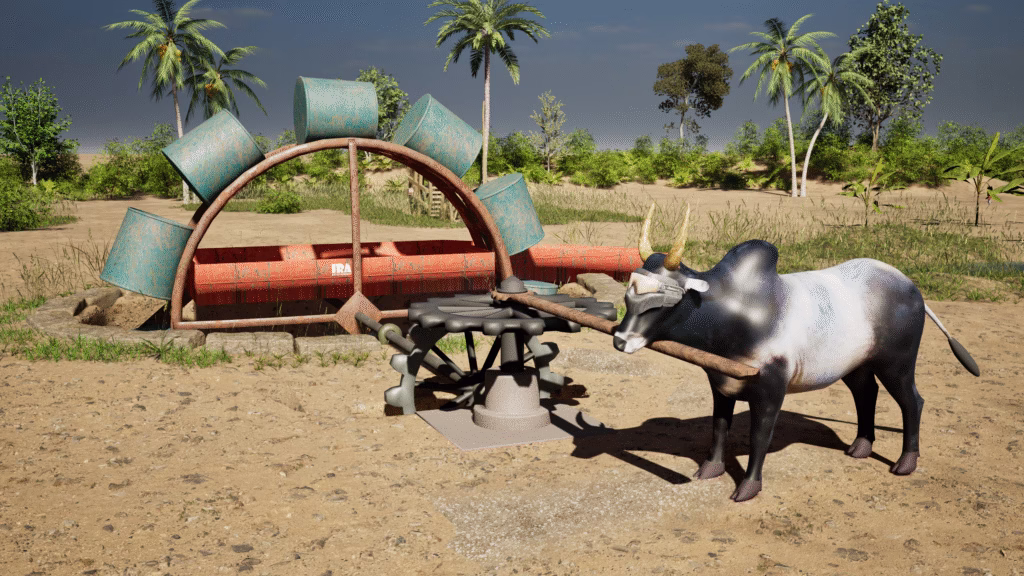

The Persian Wheel – Also Known as the Saqiyah
Around 500 BC, in ancient Persia and India, another remarkable water-lifting device emerged: the Persian Wheel, or Saqiyah.
Unlike the manual Shadoof, the Persian Wheel was mechanized using human or animal power. Here’s how it worked:
A large vertical wheel was installed above a well or water source
Attached to the wheel were buckets or earthen pots at equal distances
As the wheel rotated, the buckets dipped into the water, filled up, and were lifted to the top
Water was poured into a trough and carried to farms or storage tanks
Initially, the wheel was turned by hand, but later it was powered by bulls, camels, or donkeys. This innovation allowed people to draw large amounts of water without much human effort, making it perfect for irrigation in dry regions.
The Persian Wheel remained in use for centuries and is still seen in parts of rural India and Pakistan today.
Want to dive deeper into how a Persian Wheel works? Explore our full blog post packed with visuals and clear explanations.👇
Persian Wheel (Saqiyah): The Ancient Water Lifting Machine That Turned Deserts Into Farmland
The Hand Pump – A Leap into the Metal Age
By the 1800s, with the industrial revolution and the invention of stronger metals, a new device came into play — the hand pump.
You’ve probably seen one in rural areas or old houses. Though simple in design, the hand pump was a big step forward in water-lifting technology.
How Does a Hand Pump Work?
The main component is the cylinder, placed above the water level.
A handle is attached to a piston rod, which moves up and down inside the cylinder.
The piston inside the cylinder has a non-return valve.
There’s another valve at the bottom, called the foot valve.
A pipe goes down from the cylinder into the water source.
At the top is the outlet, where water is discharged.
When the user pushes the handle down, the piston moves up, creating a vacuum that causes water to rush into the cylinder. When the handle is lifted, the piston goes down, forcing water upward through the outlet.
This up-and-down motion makes it easy to draw water, even from deep underground sources. Hand pumps became popular worldwide and are still used in many places today.
Want to dive deeper into how a hand pump works? Explore our full blog post packed with visuals and clear explanations.👇
From Ancient Tools to Modern Inspiration
From the wooden Shadoof to the rotating Persian Wheel, and finally to the metal hand pump, humans have always found ways to meet their needs with the resources available.
These ancient tools show us something powerful: engineering doesn’t always need to be complex. Sometimes, simple, well-thought-out solutions can last thousands of years.
Many of today’s water-lifting technologies still borrow ideas from these early inventions. In fact, hand pumps are still a lifeline in developing regions, and traditional devices are preserved for their cultural and historical value.
Watch the 3D Animation
Curious to see how these inventions worked?
🎬 We’ve created a 3D animated video showing how ancient water-lifting tools like the Shadoof, Persian Wheel, and Hand Pump functioned — with detailed cross-sections and simple explanations.
👉 Watch it now to bring history to life in a way that’s easy to understand and visually engaging!
