Have you ever wondered how the locks on our doors actually work? Or how the Pin Tumbler Lock shown below (Image 1) functions? Or how a single key can open one lock but not another? In this blog, we’ll explore the mechanism behind two of the most common lock systems with the help of 3D animation and cross-sectional views. We’ll also look at how secure they really are—and how easily someone might break in using simple tools.
Here’s my 3D explanation that shows exactly how these lock systems work, with clear visuals and cross-sectional views.
A Quick Look Back: The First Lock in History
Wooden Pin Lock
Did you know the first lock system was invented over 4000 years ago in ancient Egypt? It was made entirely of wood and is considered the world’s first pin lock.
Here’s how it worked:

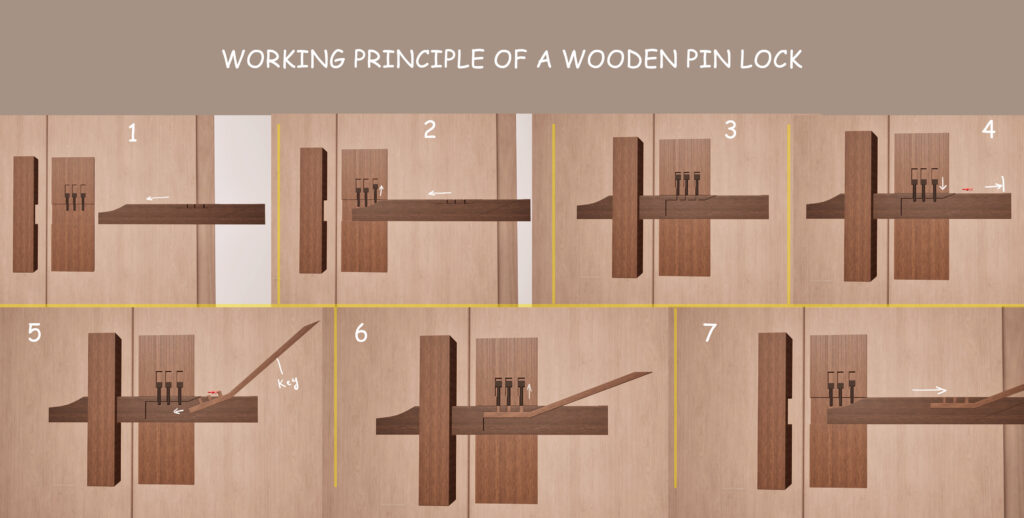

A wooden key was inserted into a wooden lock system.
Inside, there were three small pins that would fall into place when locked.
The wooden key had specially designed notches that lifted these pins when inserted, unlocking the mechanism.
It was simple, powerful, and the beginning of what we now call the pin tumbler system.
Understanding the Modern Pin Tumbler Lock
Today, the pin tumbler lock is still one of the most commonly used types in homes and offices—because it’s affordable and easy to manufacture.
Let’s break down the parts using a 3D cross-sectional view:

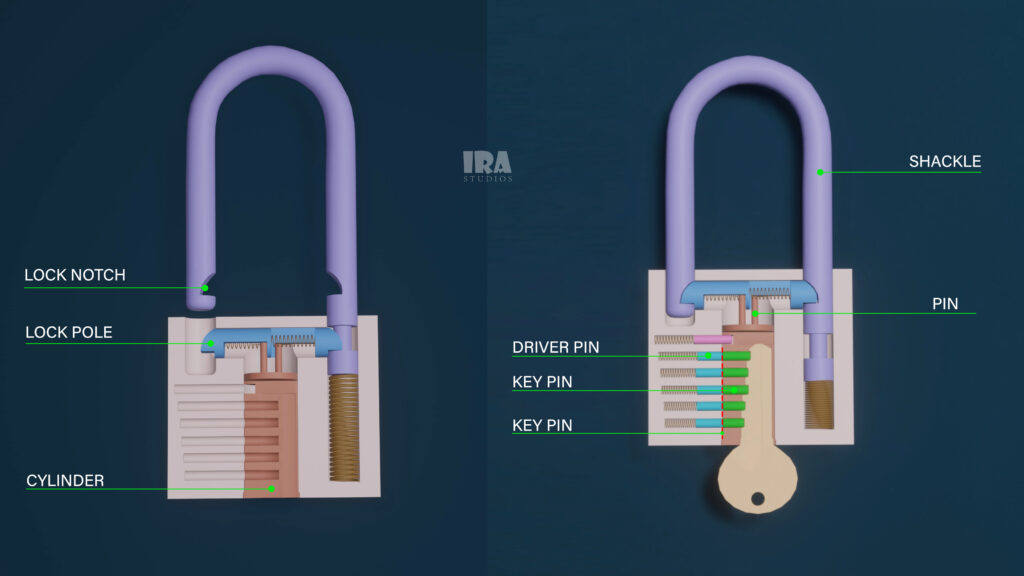

Shackle: This is the U-shaped part you see on top of padlocks, made from strong steel alloy.
Locking Pins: These are spring-loaded pins that keep the shackle in place.
Cylinder (Plug): Where the key is inserted. It contains the key pins, driver pins, and springs.
Shear Line: The dividing line between the plug and the outer casing. When pins align at this line, the plug can rotate.
How the Lock Opens with the Correct Key
When no key is inserted, driver pins block the cylinder from rotating.
When the correct key is inserted:
The key pins align perfectly.
The driver pins rise just above the shear line.
The plug can now rotate.
As the key turns, the locking pins retract, releasing the shackle or opening the door.
Some locks use steel balls instead of pins, but the principle is the same: Only the right key can align the internal components to unlock it.
How It Works Inside a Door Lock
When you insert the key into a door lock:
The plug rotates.
Pins align at the shear line.
A cam system at the back of the plug engages.
The lock is released and the door opens.
This entire process is beautifully simple—and can be fully understood by looking at a cross-sectional 3D animation.
